Are Advanced Pole Mounted Substations the Next-Generation Overhead Power Solutions?
2025-08-04
Revolutionizing Overhead Power Distribution

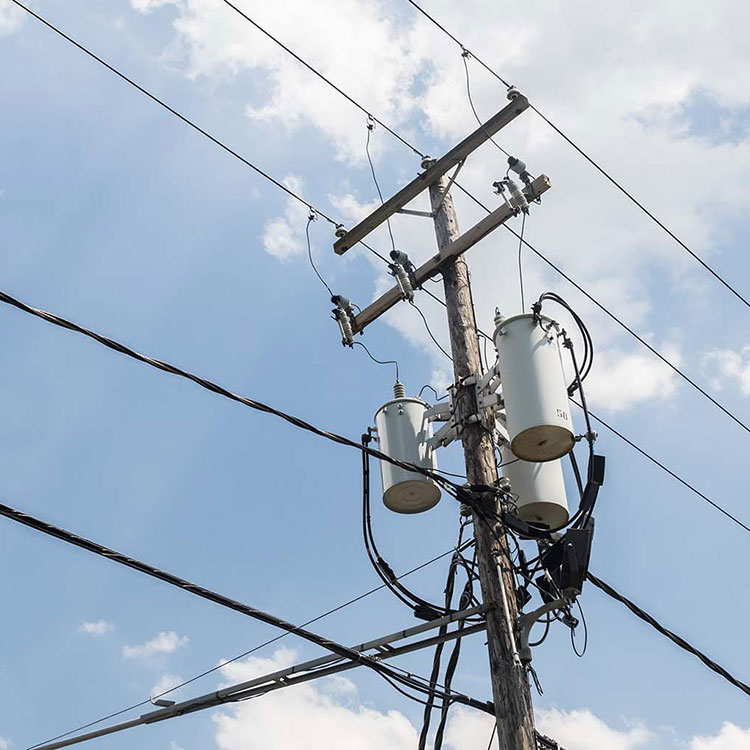

Modern pole mounted substations represent a significant evolution in overhead electrical infrastructure, combining compact design with smart grid functionality. These elevated power from CONSO·CN hubs efficiently transform medium voltage (typically 11kV-33kV) to low voltage (400V/230V) while addressing today's challenges of rapid urbanization, climate resilience, and energy monitoring.
Innovative Features of Next-Gen Pole Stations
-
Smart Grid Ready: Integrated IoT sensors for real-time monitoring
-
Storm-Resistant Design: Reinforced structures withstand 150km/h winds
-
Eco-Friendly Options: Biodegradable transformer fluids available
-
Compact Footprint: 30% smaller than conventional designs
-
Quick-Connect System: Reduces installation time by 50%
Technical Specifications & Customization
Modular Component Options
| System | Standard Configuration | Upgrade Options |
|---|---|---|
| Power Transformer | 50kVA-630kVA oil-immersed | Dry-type or amorphous core |
| HV Switching | Load-break switches | Remote-controlled vacuum circuit breakers |
| LV Distribution | 400V 4-wire system | Smart meters with GPRS communication |
| Protection System | Basic overcurrent protection | Advanced digital relays with fault recording |
| Structural Design | Hot-dip galvanized steel | Stainless steel for coastal areas |
Enhanced Performance Metrics
| Parameter | Standard Unit | High-Performance Version |
|---|---|---|
| Operating Voltage | 11kV/33kV | 66kV capability |
| Short Circuit Rating | 16kA/3s | 25kA/1s |
| Temperature Range | -30°C to +50°C | -40°C to +60°C Arctic/Tropical |
| Noise Level | 55dB | 45dB ultra-quiet |
| Protection Rating | IP54 | IP66 dust/waterproof |
Specialized Applications & Solutions
Unique Deployment Scenarios
-
Urban Density Solutions
-
Slim-profile designs for narrow streets
-
Aesthetic enclosures matching cityscapes
-
Noise-reduced versions near residential areas
-
-
Extreme Environment Packages
-
Desert versions with enhanced cooling
-
Coastal units with corrosion-resistant materials
-
Arctic packages with cold-start capability
-
-
Renewable Integration
-
Bi-directional power flow for solar feeds
-
Voltage regulation for variable generation
-
Smart inverters compatibility
-
Expert Installation & Maintenance Insights
Best Practice Installation
-
Pole Assessment
-
Minimum 300mm diameter treated wood or composite
-
Foundation loading capacity verification
-
Corrosion protection for metal poles
-
-
Safety Protocols
-
Live-line working procedures
-
Fall arrest systems for technicians
-
Temporary grounding during installation
-
-
Commissioning Checks
-
Transformer oil dielectric testing
-
Protection relay calibration
-
SCADA communication verification
-
Why Our Advanced Pole Solutions Stand Out
• Proven Reliability: 15,000+ installations across 30 countries
• Future-Proof Design: Prepared for smart city infrastructure
• Custom Engineering: Site-specific solutions for unique challenges
• Rapid Deployment: Complete kits with pre-assembled components
• Lifecycle Management: 10-year performance guarantees available
Contact our distribution specialists today for a free system assessment and technical proposal tailored to your project requirements.
