Can Pole Mounted Substations provide efficient power distribution for rural and urban areas?
2025-08-04

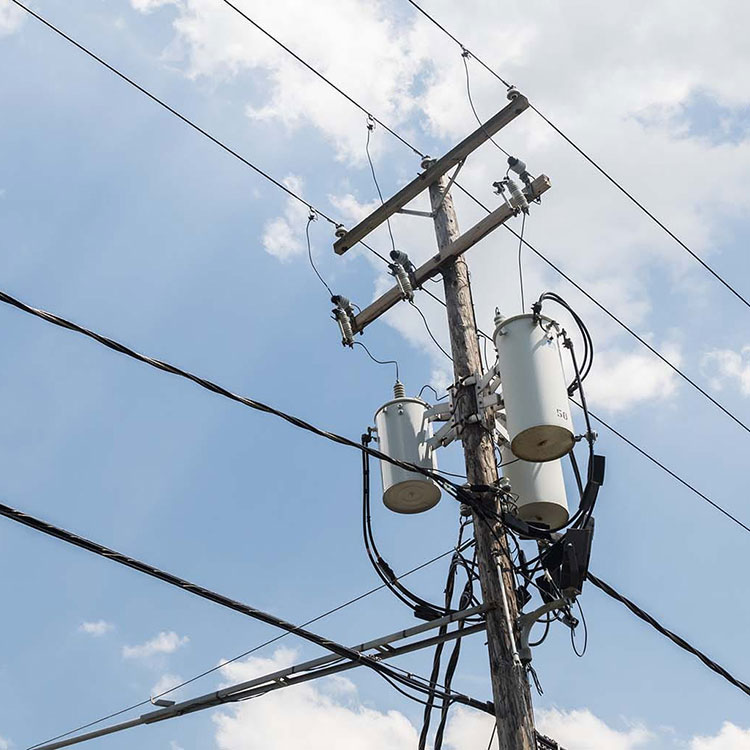

What is a Pole Mounted Substation?
A pole mounted substation is an above-ground electrical installation mounted on utility poles, designed to step down medium voltage (typically 11kV or 33kV) to low voltage (400V/230V) for local distribution. These compact units from CONSO·CN provide a cost-effective solution for electricity distribution in both rural electrification projects and dense urban environments.
Key Advantages of Pole Mounted Substations
✔ Space-saving design - Eliminates need for ground-level installations
✔ Rapid deployment - Can be installed in hours versus days for ground stations
✔ Enhanced safety - Keeps critical equipment out of public reach
✔ Cost-effective - 40-60% lower installation costs than ground stations
✔ Vandal-resistant - Secure elevated positioning deters tampering
Technical Specifications
Standard Configuration
| Component | Specifications | Options Available |
|---|---|---|
| Transformer | 25kVA-500kVA | Oil-immersed/Dry-type |
| HV Protection | Drop-out fuse | SF6 or vacuum switch |
| LV Distribution | 400V 3-phase | 4-wire or 5-wire system |
| Lightning Protection | Horn gap arresters | ZnO type arresters |
| Mounting Structure | Galvanized steel | Hot-dip galvanized |
Performance Parameters
| Parameter | Standard Rating | Enhanced Options |
|---|---|---|
| Voltage Class | 11kV/33kV | Up to 66kV available |
| Temperature Range | -20°C to +50°C | Tropicalized versions |
| Short Circuit Withstand | 12.5kA/3s | 25kA/1s available |
| Noise Level | <55dB | <50dB low-noise |
| Protection Degree | IP54 | IP65 for coastal areas |
Pole Mounted Substation FAQ
Q1: What are the typical applications for these substations?
A: Ideal for:
• Rural electrification projects
• Temporary construction site power
• Urban area network reinforcement
• Industrial estate power distribution
• Renewable energy grid connections
Q2: How does maintenance compare to ground-mounted units?
A: Maintenance advantages include:
• Easier visual inspections from ground level
• Reduced vegetation interference
• Less vulnerability to flooding
• Typically requires only annual servicing
• Hot-stick maintenance possible for live-line work
Q3: What safety features are incorporated?
A: Multiple safety systems:
• Lockable transformer compartments
• Bird guards on bushings
• Visible earth connections
• Fire-resistant materials
• Warning signs and labels
• Anti-climbing devices
Why Choose Our Pole Mounted Substations?
• 30+ Years of Field Experience - Proven designs refined through thousands of installations
• Complete Type Testing - Certified to IEC 60076 and IEC 62271 standards
• Custom Configurations - Available for special voltage or environmental requirements
• Quick Delivery - Standard units ship within 2-3 weeks
• Global Support Network - Technical assistance available worldwide
Request a site evaluation or technical consultation today - our engineers will recommend the optimal pole mounted solution for your specific requirements.
