Fundamentals of Electrical Insulators
Electrical insulators are critical components designed to prevent unwanted current flow while supporting conductors in power transmission and distribution systems. These specialized devices maintain system from CNKEEYA integrity by withstanding high voltages and environmental stresses.
Key Performance Characteristics
-
High dielectric strength to resist electrical breakdown
-
Excellent mechanical strength to support conductor weight
-
Weather resistance for outdoor applications
-
Tracking resistance to prevent surface current leakage
-
Long-term stability under electrical stress
Insulator Types & Technical Specifications
Primary Insulator Categories
| Type | Material | Voltage Rating | Typical Applications |
|---|---|---|---|
| Pin Insulator | Porcelain/Glass | 11kV-33kV | Distribution lines, rural electrification |
| Suspension Insulator | Porcelain/Composite | 66kV-800kV | Transmission lines, substations |
| Strain Insulator | Polymer/Glass | 33kV-400kV | Dead-end poles, sharp turns |

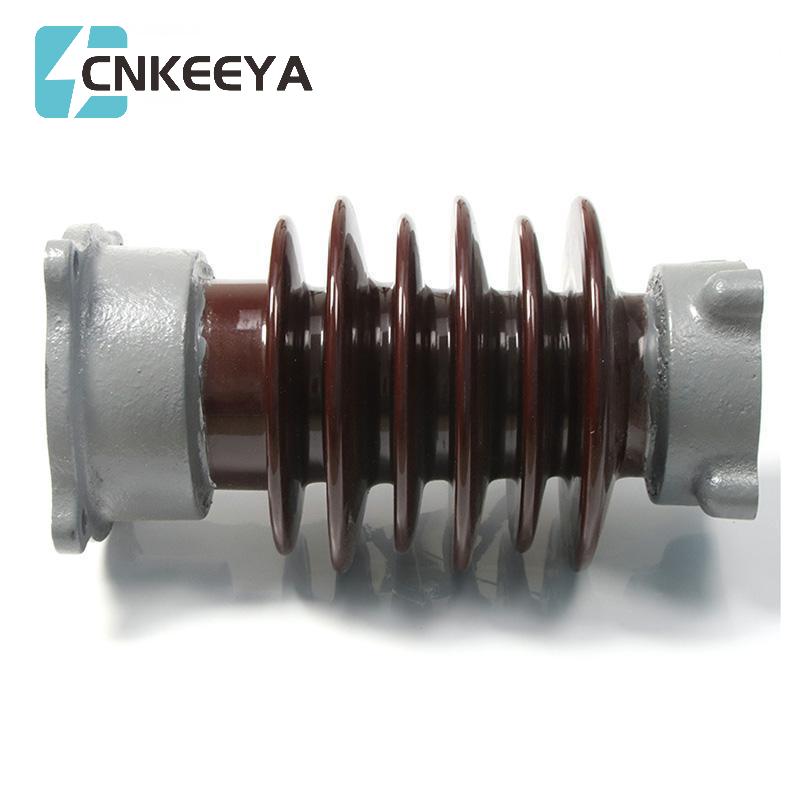

| Post Insulator | Porcelain/Silicone | 11kV-765kV | Substation equipment, bushings |
Material Comparison
| Property | Porcelain | Glass | Polymer |
|---|---|---|---|
| Dielectric Strength | 60-70 kV/cm | 50-60 kV/cm | 100-150 kV/cm |
| Mechanical Strength | High | Very High | Moderate |
| Weight | Heavy | Heavy | Light |
| Pollution Performance | Moderate | Moderate | Excellent |
| Impact Resistance | Low | High | High |
| Maintenance | Regular cleaning | Self-cleaning | Minimal |
Technical Parameters & Selection Guide
Critical Performance Factors
| Parameter | Test Standard | Typical Values |
|---|---|---|
| Dry Flashover Voltage | IEC 60383 | 70-250 kV |
| Wet Flashover Voltage | IEC 60383 | 45-180 kV |
| Impulse Withstand | IEC 60071 | 110-550 kV |
| Mechanical Load | IEC 60383 | 70-400 kN |
| Creepage Distance | IEC 60815 | 20-45 mm/kV |
Selection Criteria by Application
-
Transmission Lines (HV)
-
Suspension type polymer insulators
-
400kN+ mechanical strength
-
35mm/kV creepage for polluted areas
-
-
Distribution Networks
-
Pin or post type porcelain
-
12kN mechanical strength
-
25mm/kV creepage distance
-
-
Substation Equipment
-
Hollow core post insulators
-
16-50kN cantilever strength
-
Anti-fog design for humid areas
-
Installation & Maintenance Best Practices
Proper Installation Techniques
-
Verify mechanical load ratings match requirements
-
Ensure correct creepage distance for local pollution class
-
Use proper torque for hardware connections
-
Maintain minimum clearance distances
Maintenance Protocols
-
Visual inspections for cracks/chips (porcelain/glass)
-
Hydrophobicity tests (polymer units)
-
Infrared scanning for hot spots
-
Contamination monitoring in polluted areas
-
Mechanical load testing (sample basis)
Expert Q&A: Insulator Applications
Q: How do I select insulators for coastal areas?
A: For salt contamination:
-
Choose silicone rubber polymer insulators
-
Specify extra creepage distance (45mm/kV)
-
Select designs with water-shedding profiles
-
Consider periodic washing systems
Q: What causes insulator failure?
A: Common failure modes:
-
Electrical: Flashover due to pollution
-
Mechanical: Crack propagation from stress
-
Environmental: UV degradation (polymers)
-
Thermal: Thermal shock in porcelain
Q: When should insulators be replaced?
A: Replacement indicators:
-
Visible cracks or punctures
-
Loss of hydrophobicity (polymers)
-
Reduced flashover voltage
-
Corroded metal fittings
-
Excessive radio interference
Why Our Insulators Deliver Superior Performance
Our product line offers:
-
Custom designs for specific voltage and pollution requirements
-
Advanced polymer formulations with proven UV resistance
-
Complete testing per international standards
-
Technical support for proper selection and application
-
Global supply chain for timely deliveries
For specialized applications, ask about our:
-
Anti-fog designs for humid environments
-
Ice-resistant profiles for cold climates
-
Custom creepage configurations
-
High-strength seismic options
Contact our engineering team for insulator selection guidance tailored to your project requirements.
