How Does An Air Circuit Breaker Work?
2025-08-29

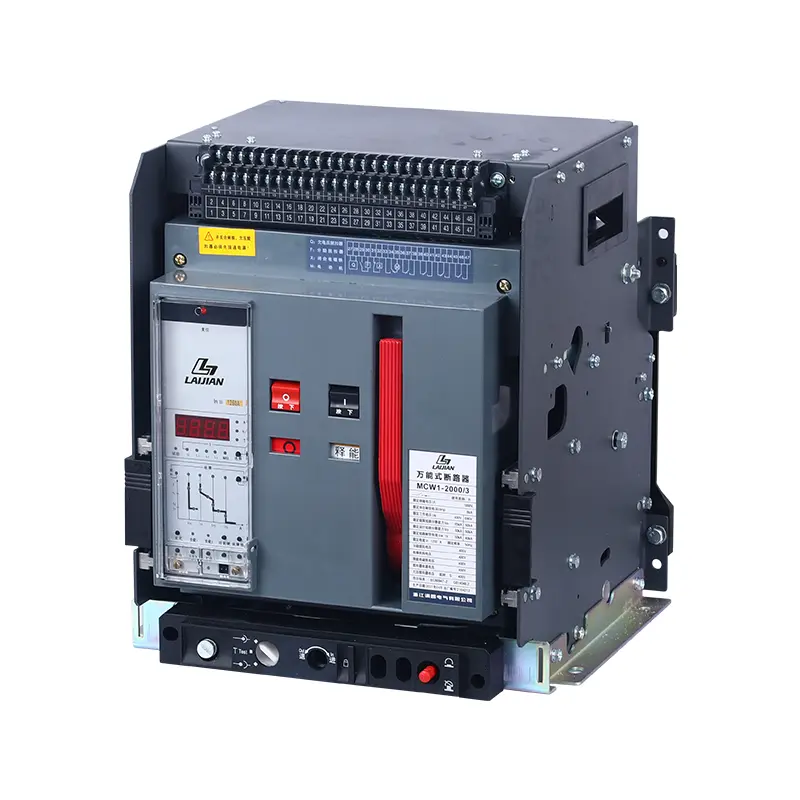

An Air Circuit Breaker (ACB) is a critical component in electrical distribution systems, designed to protect electrical circuits from damage caused by overloads or short circuits. It operates by interrupting current flow when a fault is detected, using air as the medium to extinguish the arc. This mechanism ensures safety and prevents potential hazards in commercial and industrial settings. At our factory, we have engineered Laijian Air Circuit Breakers to meet the highest standards of reliability and performance.
Understanding the operational principle of an air circuit breaker is essential. When a fault occurs, the contacts within the breaker separate, creating an electric arc. The ACB is designed to stretch and cool this arc through a series of arc chutes, which split it into smaller segments that are easier to extinguish. This process happens rapidly, minimizing damage and maintaining system integrity. Our Laijian breakers incorporate advanced materials and design features to enhance this arc-quenching process, ensuring quick and efficient interruption.
Key Product Parameters
Our air circuit breaker product line is built with precision and tested rigorously to comply with international standards. Below is a detailed list of parameters that define our offerings.
List of Features:
1. High breaking capacity suitable for diverse applications
2. Intelligent trip unit for precise protection settings
3. Modular design for easy maintenance and installation
4. Robust construction ensuring long service life
5. Environmental adaptability with resistance to humidity and dust
Table of Specifications:
| Parameter Type | Specification Detail | Application Range |
| Rated Current | 630A to 6300A | Industrial Power Systems |
| Breaking Capacity | Up to 100kA at 415V | High-Fault Environments |
| Operating Voltage | 230V to 690V AC | Commercial Buildings |
| Mechanical Life | 20,000 operations | Heavy-Duty Use |
| Standards Compliance | IEC 60947-2, GB 14048.2 | Global Safety Requirements |
These parameters highlight the versatility and durability of our Laijian Air Circuit Breakers, making them ideal for a wide range of electrical systems.
Frequently Asked Questions
Q1: What is the primary function of an Air Circuit Breaker?
The primary function of an Air Circuit Breaker is to protect electrical circuits by automatically cutting off power when it detects abnormal conditions such as overloads or short circuits. This prevents equipment damage and reduces the risk of fire, ensuring operational safety and continuity.
Q2: How does an Air Circuit Breaker differ from other types of circuit breakers?
Unlike oil or vacuum circuit breakers, an Air Circuit Breaker uses atmospheric air to extinguish the arc during interruption. This makes it more environmentally friendly and easier to maintain. Additionally, ACBs are typically used for higher current applications and offer greater flexibility in settings and diagnostics compared to other breakers.
Why Choose Our Products?
We take pride in our manufacturing processes, which integrate cutting-edge technology with stringent quality control. Our factory produces Air Circuit Breakers that are not only efficient but also customizable to meet specific client needs. With a focus on innovation and customer satisfaction, we ensure every product delivers optimal performance and safety.
For reliable and high-performance electrical protection solutions, choose Laijian Air Circuit Breakers from Wenzhou Laijian Electrical Co.,Ltd. Contact us today to learn more about our products and how they can benefit your operations.
