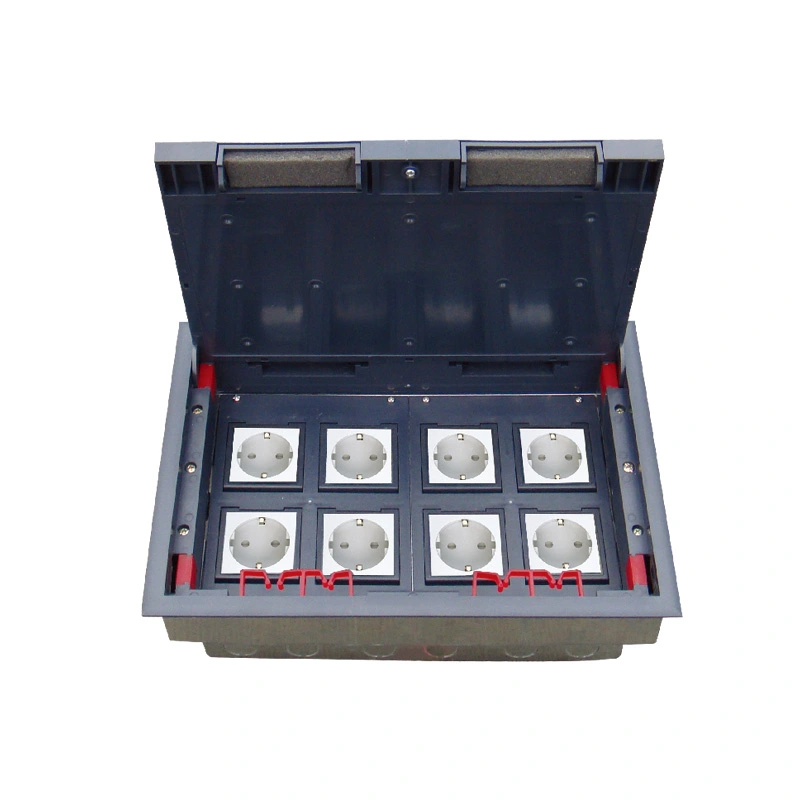

How to install Plastic Floor Socket correctly

Installing a plastic floor socket correctly involves ensuring electrical safety, mechanical stability, and a flush fit with the floor surface. Here's a step-by-step guide:

Tools and Materials Needed:

Plastic floor socket unit

Measuring tape

Marker or chalk

Chisel and hammer or core drill (for concrete)

Screwdriver

Wire stripper

Electrical wires (if not pre-installed)

Conduit pipe (if required)

Level

Mounting screws and anchors

Protective gloves

Step-by-Step Installation Guide:

1. Plan the Location

Choose a location where the socket will be used frequently (e.g., near a desk, table, or work area).

Avoid places with heavy foot traffic or where furniture may be placed over it.

2. Mark the Position

Use the socket box to trace the cut-out on the floor.

Double-check for any wiring, plumbing, or structural components underneath.

3. Cut the Opening

For wooden floors: Use a jigsaw to cut the opening.

For concrete floors: Use a core drill or hammer and chisel to make the hole.

Ensure the depth accommodates the full socket box with some allowance for wiring.

4. Install Conduit (if applicable)

If running wires through a conduit, install it before placing the socket.

Ensure it routes safely from the distribution box to the socket location.

5. Wire the Socket

Strip about 10mm of insulation off each wire.

Connect Live (L), Neutral (N), and Earth (E) to their respective terminals.

Tighten terminal screws firmly.

Double-check polarity and grounding.

6. Insert the Socket into the Floor

Carefully place the wired socket into the opening.

Ensure it's flush with the floor surface using a level.

Secure it with the mounting screws provided.

7. Test the Socket

Turn the power back on at the breaker.

Use a socket tester or plug in a device to ensure correct function and polarity.

Important Safety Tips

Always turn off the power at the circuit breaker before working with electrical wiring.

If you're unsure about any electrical connection, consult or hire a licensed electrician.

Use floor sockets with IP44 or higher rating for water resistance, especially in areas prone to moisture.
