Why choose Oil Immersed Transformers?

Oil immersed transformers are pivotal components in electrical power distribution systems. They utilize oil both as an insulating medium and a cooling agent, ensuring efficient and safe operation. This guide delves into the specifications, advantages, applications, and maintenance of oil immersed transformers, providing a comprehensive understanding for professionals in the field.

What Are Oil Immersed Transformers?

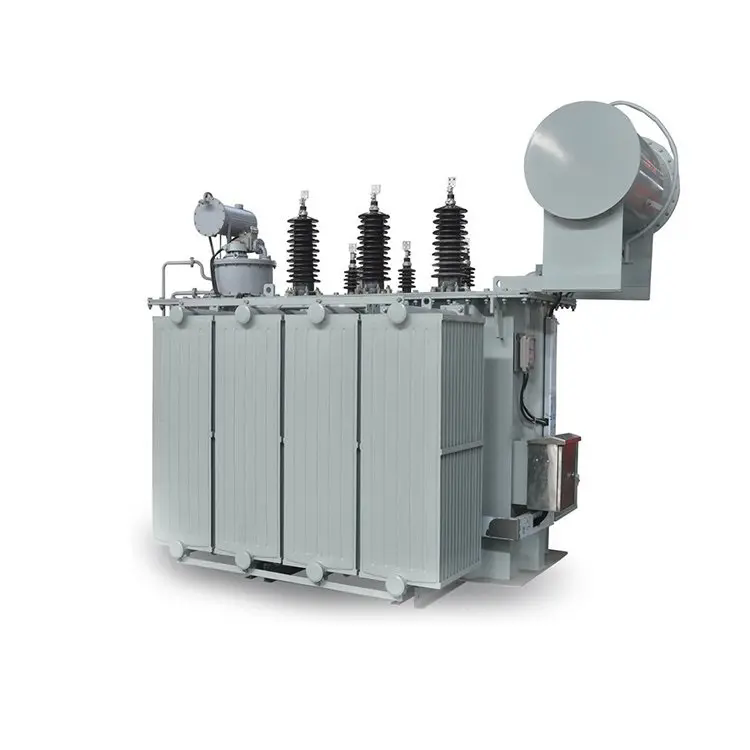

An oil immersed transformer is a type of transformer where the core and windings are submerged in oil. The oil serves dual purposes: it insulates the internal components and dissipates the heat generated during operation. This design is prevalent in medium to large-scale power distribution systems due to its efficiency and reliability.

Specifications of Oil Immersed Transformers

Understanding the technical specifications is crucial for selecting the appropriate transformer for specific applications. Below is a detailed table outlining common specifications:

These specifications are in line with international standards such as IEC 60076 and can be customized based on project requirements.

Advantages of Oil Immersed Transformers

Oil immersed transformers offer several benefits:

• Effective Cooling: The oil circulates naturally, removing heat from the core and windings.

• Electrical Insulation: Oil provides high dielectric strength, ensuring safe operation.

• Long Lifespan: Properly maintained transformers can operate efficiently for decades.

• High Load Capacity: Suitable for handling large electrical loads in industrial settings.

• Versatility: Applicable in various environments, including outdoor substations and industrial facilities.

Applications of Oil Immersed Transformers

Oil immersed transformers are utilized in diverse sectors:

• Power Generation Plants: Step-up transformers increase voltage for transmission.

• Substations: Step-down transformers reduce voltage for distribution.

• Industrial Facilities: Provide stable voltage for machinery and equipment.

• Renewable Energy Systems: Integrate with wind and solar power installations.

Maintenance and Monitoring

Regular maintenance ensures the longevity and efficiency of oil immersed transformers:

• Oil Quality Monitoring: Regularly check for contaminants and moisture levels.

• Temperature Control: Ensure that the transformer operates within specified temperature limits.

• Leak Detection: Inspect for oil leaks and address promptly.

• Dissolved Gas Analysis (DGA): Analyze gases in the oil to detect potential faults.

Common Issues and Troubleshooting

While oil immersed transformers are reliable, certain issues may arise:

• Oil Leaks: Inspect seals and gaskets regularly.

• Overheating: Check cooling systems and ensure adequate ventilation.

• Contaminated Oil: Replace oil if it becomes acidic or contains particles.

• Electrical Faults: Use DGA to identify and address issues promptly.

Frequently Asked Questions (FAQs)

Q1: What is the primary function of transformer oil?

• A1: Transformer oil serves as both an insulating medium and a cooling agent. It prevents electrical arcing and dissipates heat generated during operation.

Q2: How often should transformer oil be replaced?

• A2: Oil replacement depends on the condition and age of the oil. Regular testing for moisture and acidity levels can determine the need for replacement.

Q3: Can oil immersed transformers be used indoors?

• A3: Yes, but precautions must be taken to manage the risk of fire. Proper ventilation and fire-resistant materials are essential.

Oil immersed transformers are integral to modern electrical distribution systems, offering efficient cooling, reliable insulation, and versatility across various applications. Understanding their specifications, advantages, and maintenance requirements is crucial for ensuring optimal performance and longevity.

For more information or to discuss specific requirements, please contact us. Our team is ready to assist you in selecting the right transformer solution for your needs.
