Product Description

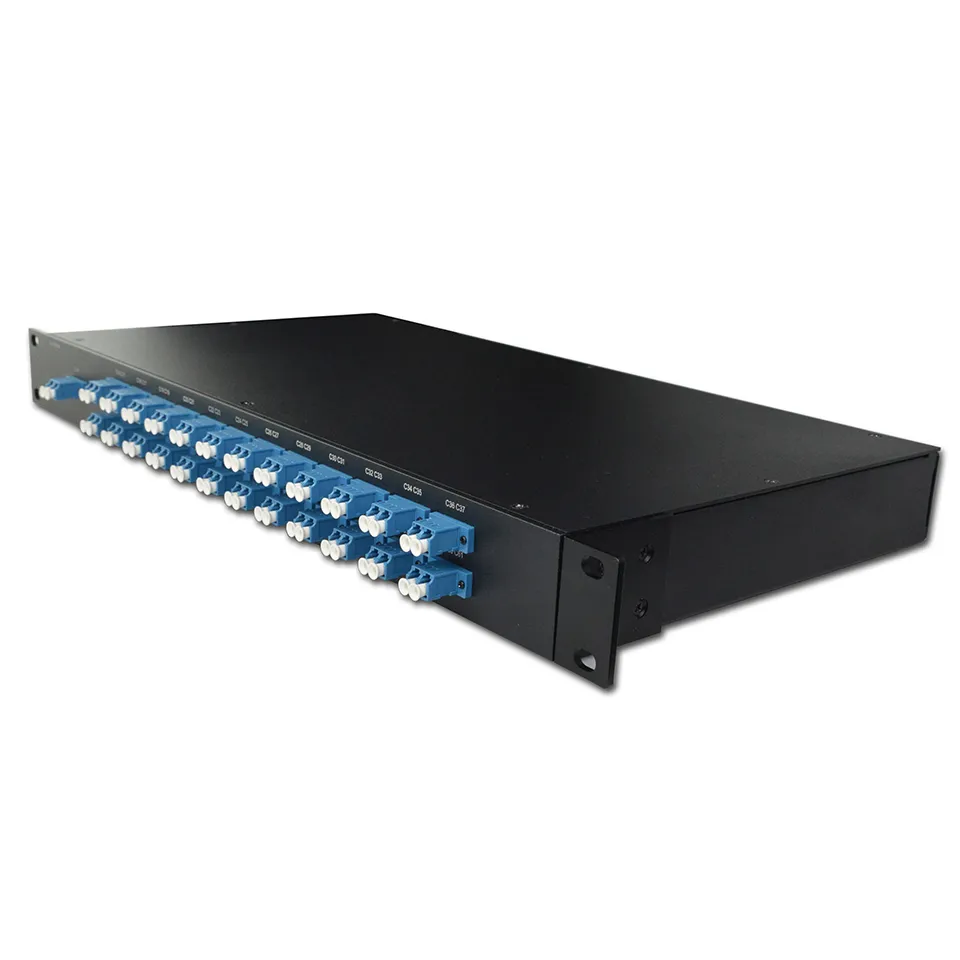

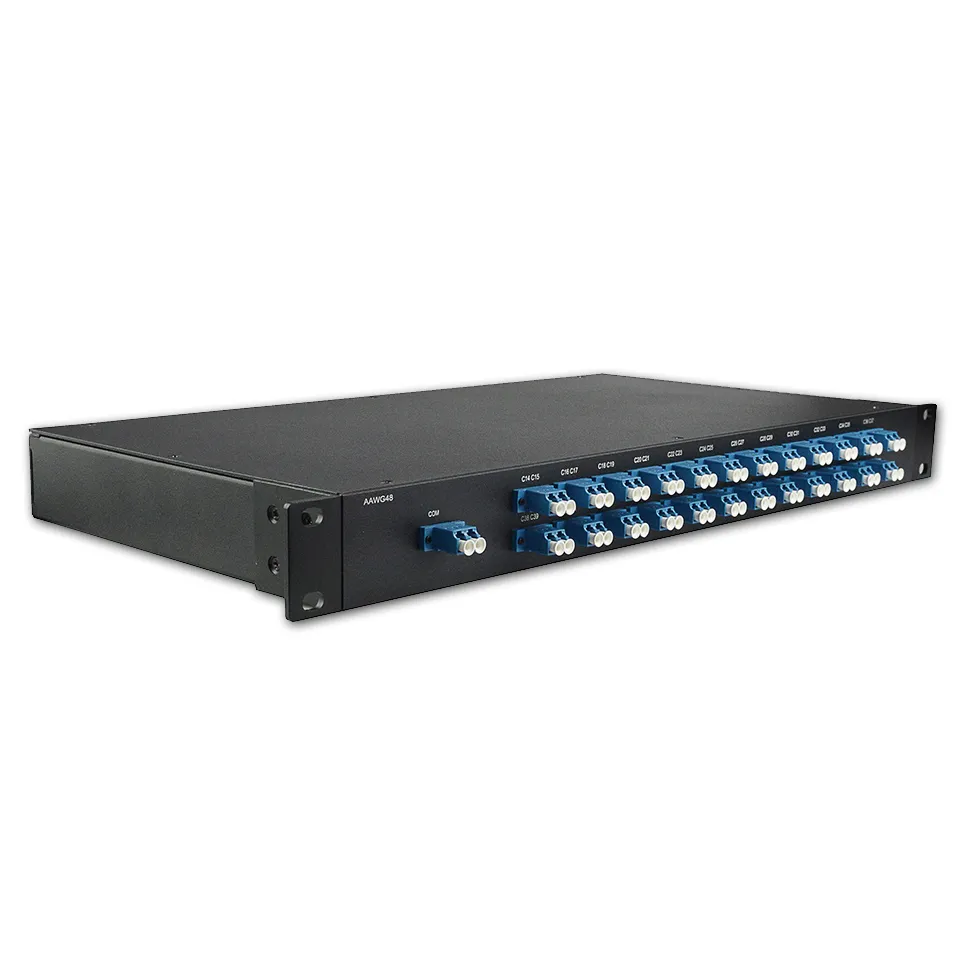

Optical Multiplexer Demultiplexing AAWG48 DWDM Module

Product description: Thermal AWG, thermally stabilized, DWDM, Even band, 1528.77nm starting wavelength, -5ºC~65ºC

Features
           ☆ High isolation
           ☆ Excellent wavelength stability
           ☆ High durability
           ☆ DWDM wavelengths up to 48
☆ 5V power driving

Application
           ☆ DWDM
           ☆ Metro networks

Optical SPEC

Parameter	Specification			Units	Comments
Parameter	MIN	TYP	MAX	Units	Comments
Number of output Channels	16/32/40/44/48				Customer define
Channel Spacing	100/200			GHz	Customer define
Wavelength Accuracy	-0.050		0.050	nm	BOL
ITU band	-0.1		0.1	nm	ITU definition
1st wavelength	1528.77			nm	or Customer define
Insertion Loss			5.0	dB	Including COM connector, BOL
insertion Loss Uniformity			1.2	dB
PDL			0.5	dB
Ripple			0.5	dB
0.5dB Bandwidth	0.2			nm
1dB Bandwidth	0.4			nm
3dB Bandwidth	0.6			nm
20dB Bandwidth			1.2	nm
Adjacent channel isolation	25			dB
Non-Adjacent Channel Isolation	30			dB
Total Isolation	22			dB
Return Loss	45			dB	Including connector
Directivity	45			dB
PMD			0.5	ps
Group Delay Ripple			1	ps
Chromatic Dispersion	-20		20	ps/nm

Environment SPEC

Parameter	Specification			Units	Comments
Parameter	MIN	TYP	MAX	Units	Comments
Maximum Input Optical Power rating			24	dBm
AWG Power comsumption			8	W	Test at lower temperature
AWG heater resistance		3.5		Ω
AWG temperature	68		85	ºC
Operating temperature	-5		65	ºC	or Customer define
Storage temperature	-40		85	ºC
Storage humidity			85	%

Channel Plan

CH number	Wavelength	Frequency (THz)	CH number	Wavelength	Frequency (THz)
1	1528.77	196.1	25	1547.72	193.7
2	1529.55	196	26	1548.52	193.6
3	1530.33	195.9	27	1549.32	193.5
4	1531.12	195.8	28	1550.12	193.4
5	1531.9	195.7	29	1550.92	193.3
6	1532.68	195.6	30	1551.72	193.2
7	1533.47	195.5	31	1552.52	193.1
8	1534.25	195.4	32	1553.33	193
9	1535.04	195.3	33	1554.13	192.9
10	1535.82	195.2	34	1554.94	192.8
11	1536.61	195.1	35	1555.75	192.7
12	1537.4	195	36	1556.56	192.6
13	1538.19	194.9	37	1557.36	192.5
14	1538.98	194.8	38	1558.17	192.4
15	1539.77	194.7	39	1558.98	192.3
16	1540.56	194.6	40	1559.79	192.2
17	1541.35	194.5	41	1560.61	192.1
18	1542.14	194.4	42	1561.42	192
19	1542.94	194.3	43	1562.23	191.9
20	1543.73	194.2	44	1563.05	191.8
21	1544.53	194.1	45	1563.86	191.7
22	1545.32	194	46	1564.68	191.6
23	1546.12	193.9	47	1565.5	191.5
24	1546.92	193.8	48	1566.31	191.4

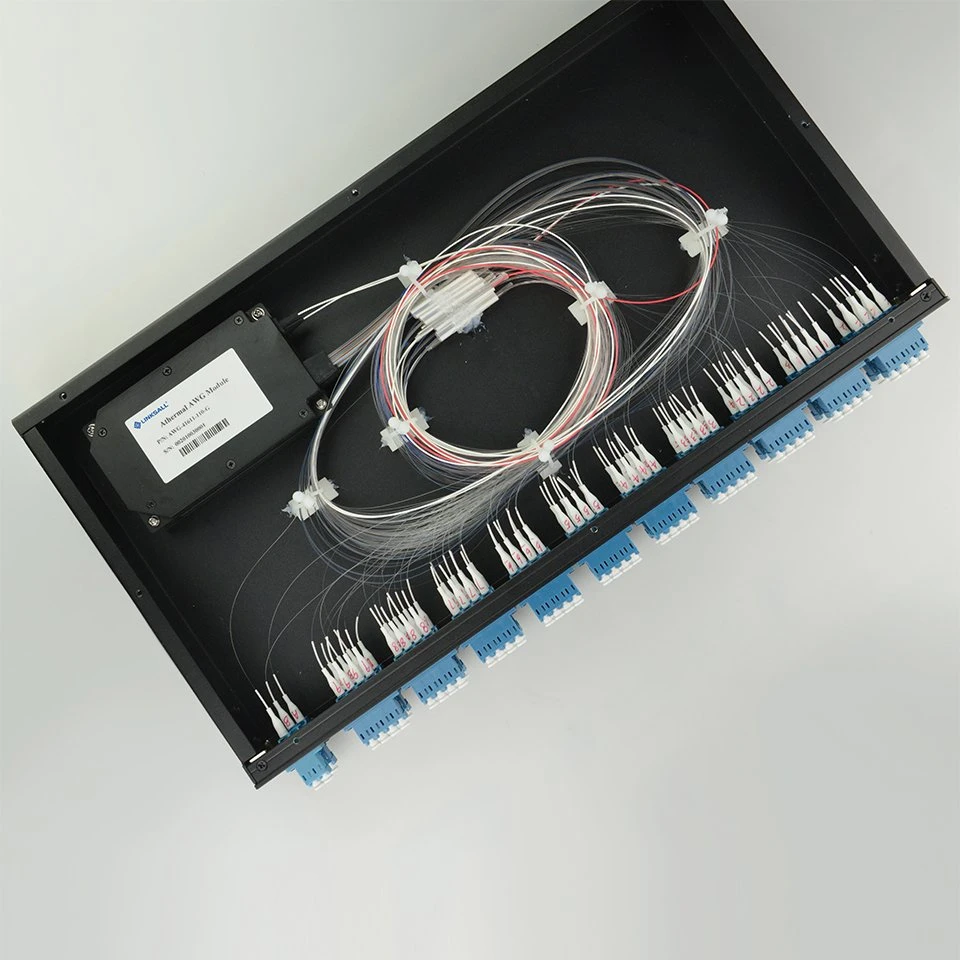

Package and Outline

Fiber length		Customer define
Connector type	LC/UPC	or Customer define

Ordering Information

PN: TAWG-ABCDE-XYZK

A	B	CD	E	X	Y	Z	K
Channel number	Channel Spacing	Starting wavelength	Operating temperature	Packaging	Fiber length	Connector	thermistor
1: 32 2: 40 3: 44 4: 48	1:100G 2:200G	61:ITU CH-61 60:ITU CH-60	1:-5ºC~65ºC 2: -15ºC~65ºC	1:70X120X10.5	1: 1m 2: 2m	0: no connetor 1:LC/UPC 2:MU/UPC 3:FC/UPC 4:SC/UPC	1:10K 2: 50K
