Product Description

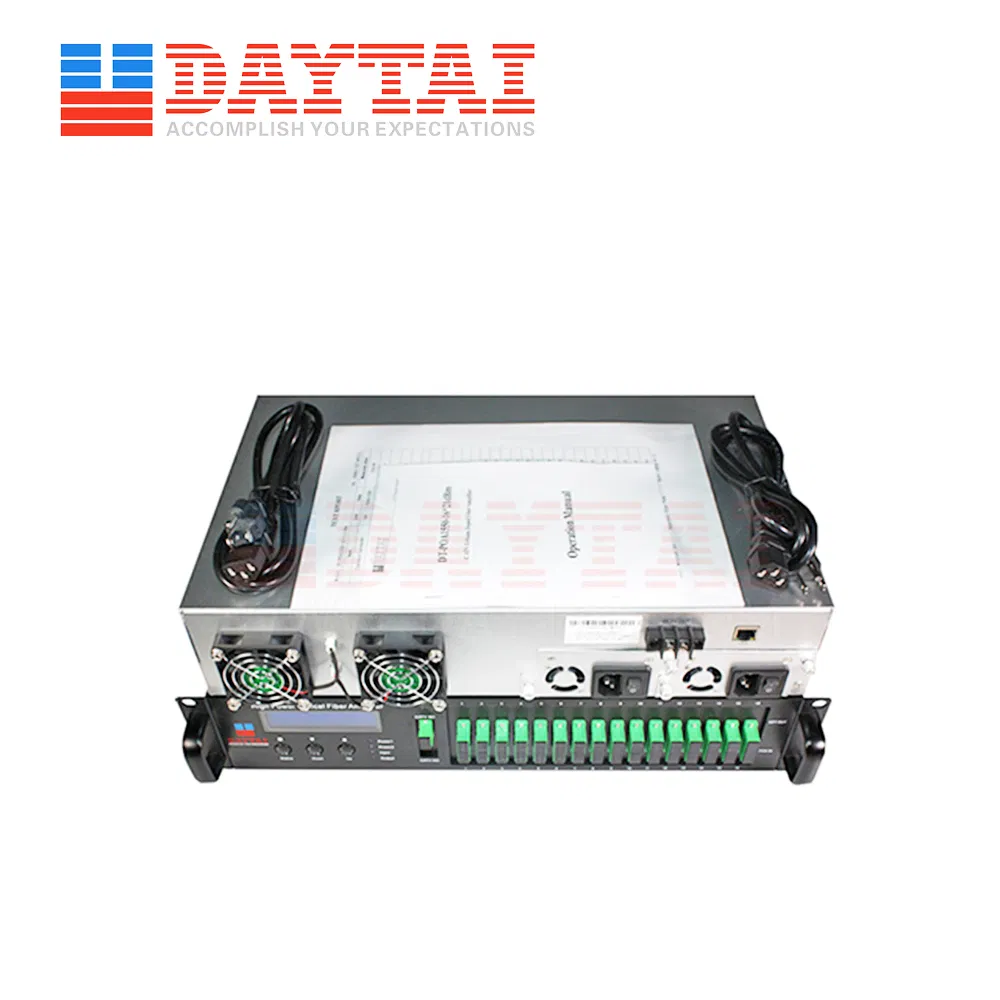

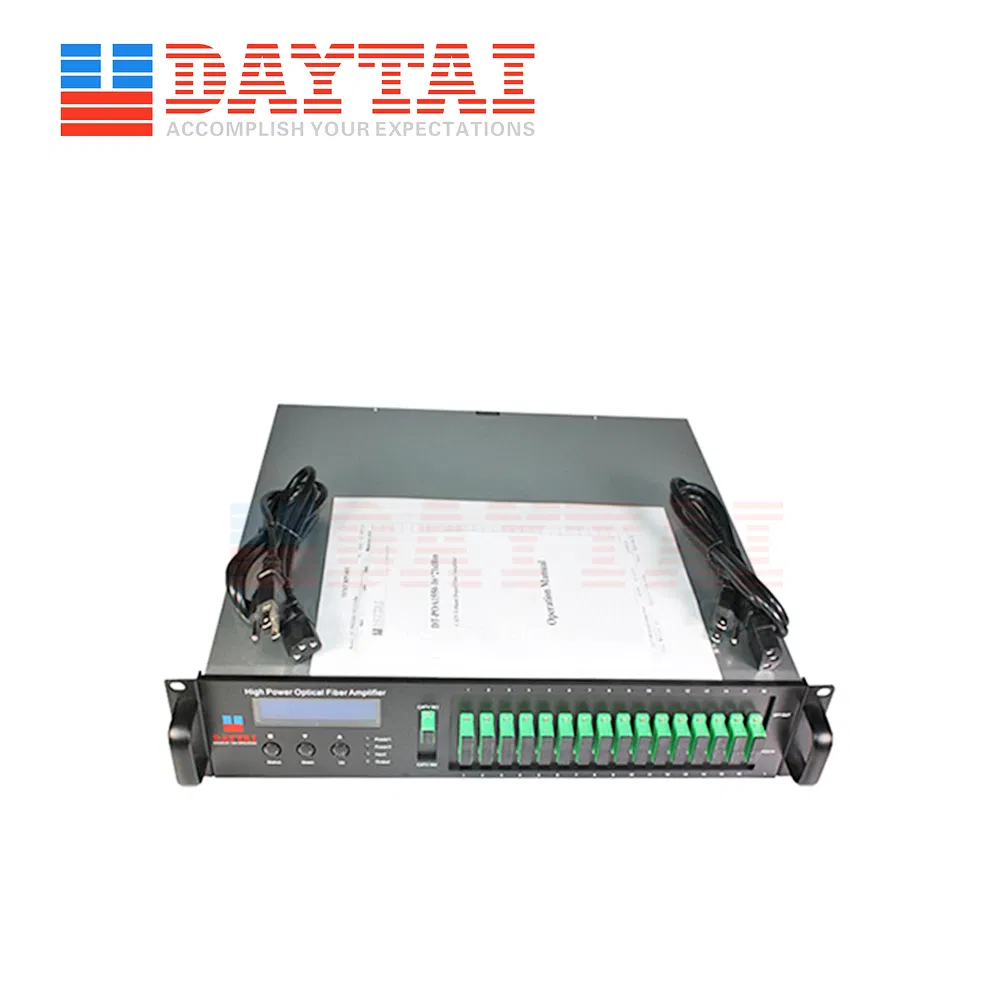

Cheap Price 1550nm 16 Way Optical Amplifier EDFA with Wdm
Description
DT-OA/PA1550-X x XX dbm series high power fiber amplifier adopts high-reliability multi-mode PUMP laser and double-clad fiber in core component. It adopts unique APC (automatic power control) and ATC (automatic temperature control) circuit to make output power keep high stability, good reliability. Unique optical path design to ensure the excellent optical path index; And adopted high-stability and high-precision MPU (micro-processing unit) system is very convenient, reliable and intelligent to use, adjust and display.

DT-OA/PA1550-X x XX dbm series high power fiber amplifier adopts unique intelligent temperature-control system; Adopted special temperature-control chip can make the equipment heating volume reduce by 30% compared with conventional circuit. Special heat-dissipating fan channel design can ensure the perfect temperature stability, meanwhile powerful fan will start to work when the whole machine temperature is higher than 40ºC, and will stop when temperature is lower than 36ºC, which ensure the heat-stability of the system and long-life of fan.

DT-OA/PA1550-X x XX dbm series high power fiber amplifier is characterized by intelligent monitoring and management system. With Ethernet network management interface which is open to ensure that has connectivity with any network management system.

DT-OA/PA1550-X x XX dbm series high power fiber amplifier can be widely used in CATV optical transmission system, as well as FTTH required high power distribution system and access system.

Feature
⊙2U, 19″ standard container.
⊙ Large LCD display screen.
⊙ 4, 8, 16, 32, 64 multiple output po.
⊙ Very low CSO deterioration: <-65 dBc.
⊙Can reduce the 98% device space usage.
⊙Can reduce 95% power consumptionrts optional.
⊙ Low noise figure, lower than 5dB when 0dBm input.
⊙Optional dual optical input, built-in 2 ?1 optical switch.
⊙Ultra-high power output, up to 10W total output power, one set can carry 3000~6000 pcs optical nodes.
⊙Output optical power 0.2~-4.0dB is adjustable, 0.1dB step, to facilitate network application and equipment backup.
⊙Equipped-in network management responder complying to SNMP protocol, which can monitor and control equipment remotely.
⊙ Intelligent Temperature Control System: adopts special temperature control chip, heat dissipation and power consumption reduce by 25% compared with conventional products.

Specifications

Item	Unit	Parameter
Working wavelength	nm	1535~1565
Input optic power	dBm	-5~+10
Total output power	dBm	28~33	34~37	38~40
Noise figure	dB	≤5.0	≤5.5	≤6.0
output port number		4,8,16,32,64
Each port output power	dBm	10~23
Output power adjustable range	dB	-4.0 to +0.2
Output power stability	dB	≤±0.2
Return loss	dB	≥45
Pump leakage power	dBm	≤-30
Polarization relevant gain	dB	≤0.3
Polarization membrane dispersion	Ps/nm	≤0.5
Optic Connector		SC/APC,FC/APC or LC/APC
Power Supply Voltage	V	AC110~265(50~60Hz)or DC48V
Power Consumption	W	≤55	≤75	≤120
Working Temperature	ºC	-5~+50
Max. Working Relevant Humidity	%	Max. 85%, no condensation
Storage Temperature	ºC	-40~+80
Outer size	mm	483×440×88
Packing size	mm	550×540×180
Net weight	Kg	8.45
Total weight	Kg	9.50
